Types of waterproofing: how to categorise the main systems

Why it helps to categorise waterproofing before choosing

People arrive at waterproofing with a leak and a shortlist of product names, which makes the field feel like dozens of unrelated options. It is easier to reason about once you see that almost every option falls into a small number of families, and that those families answer two different questions: what the waterproofing is made of and where it sits relative to the water.

This guide frames those families so you can place any quotation or recommendation into context. It intentionally stays broad. The detailed comparisons — coating versus sheet membrane, PU versus cementitious, roof versus basement, and what any of it costs — live in dedicated articles, and we point to the right one as each comes up.

One idea runs through everything below: waterproofing is a system that fails at defects and details, not usually in the open field. Choosing a type is only the first decision; detailing at joints, upstands, penetrations and drains decides whether it lasts.

By form: what the waterproofing is made of

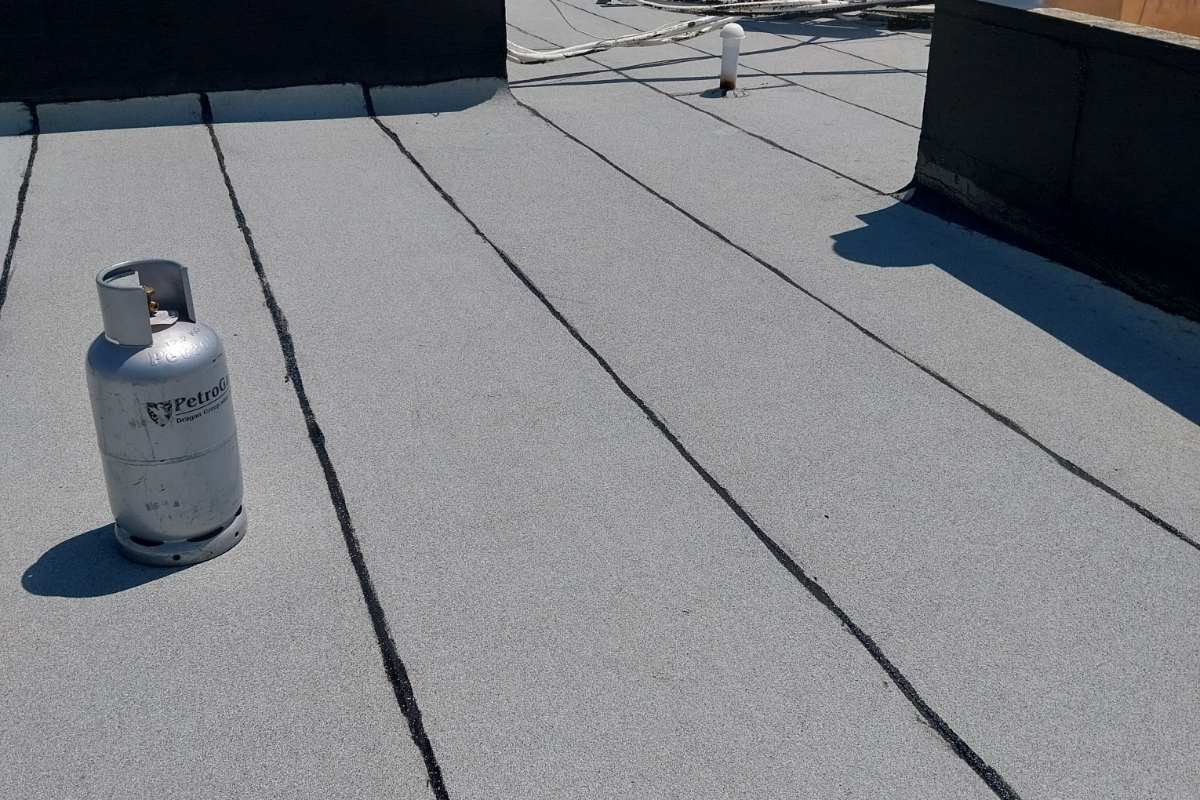

The most common way to categorise waterproofing is by its physical form. Liquid-applied coatings and membranes are applied wet and cure into a seamless film that follows the substrate and details continuously; polyurethane, epoxy and acrylic chemistries sit here. Preformed sheet membranes are factory-made rolls (bituminous, self-adhesive or thermoplastic) laid and lapped on site, so the film thickness is consistent but every overlap and penetration is a joint to be sealed.

Cementitious slurries are polymer-modified mineral coatings that bond well to concrete and tolerate damp substrates, commonly used on internal wet areas and water-retaining structures; they are rigid and generally need a separate flexible layer where movement or cracking is expected. Integral and crystalline systems work from within the concrete — admixtures added at the batching plant or crystalline treatments that react with moisture to densify the matrix — rather than forming a surface film.

Sparco's approach is liquid-applied coating systems: a repaired substrate, a damp-tolerant primer, a seamless water-based epoxy body coat and a water-resistant polyurethane finish. Sparco does not manufacture sheet membranes or cementitious systems; where a project calls for one of those, we describe it generically and can develop a custom coating system through ODM. The table below summarises the families at a glance.

By position: positive-side versus negative-side

The second way to categorise is by where the waterproofing sits relative to the water source. Positive-side means the coating is on the same face as the water, so pressure pushes it onto the substrate; this is the more robust arrangement and covers most roofs, decks and planters. Negative-side means the coating is on the opposite face — for example the inside of a basement wall — where hydrostatic pressure acts to push the layer off and demands high adhesion and a system rated for that duty.

We name the distinction here because it changes which types are even candidates: negative-side situations often point toward cementitious or crystalline approaches rather than a surface film, and honest limits matter. The full treatment, including how high water tables in Singapore drive negative-side pressure, belongs in the basement waterproofing article; this pillar defers the deep dive there.

The honest disambiguation: which "which is better" question are you asking?

Several comparisons get flattened into one, and they are not the same question. "Coating versus membrane" is a question about format — a seamless liquid film versus a lapped preformed sheet — and it is covered in our coating-vs-membrane article. "PU versus cementitious" is a question about chemistry — a flexible organic finish versus a rigid mineral one — and it belongs in the PU-vs-cementitious comparison.

It is worth being deliberate about which you are actually deciding. A team can settle the format question and still have the chemistry question open, or vice versa. If a salesperson answers "which is better" without first asking which axis you mean, treat that as a prompt to slow down. Read the comparison that matches your decision rather than a single ranked list.

Waterproofing is a system, not one product

The most useful mental shift is to stop thinking about the waterproofing layer as a single tin and start thinking about the whole build-up. A liquid-applied system repairs the substrate first (because water finds every defect), primes it so the film bonds even when the concrete is damp, lays down a seamless body coat for continuity, and finishes with a water-resistant layer suited to the exposure. Remove any one of those and the others cannot compensate.

The diagram shows a generic protective build-up so the principle is visible regardless of brand. In Sparco terms the stack is Sparco Epoxy Bonding Primer #100 (damp-tolerant, quoted on its TDS at 6–8 m²/kg per coat), Sparcofloor WBE 400 as the seamless body coat, and Sparco Hybrid Urethane as a water-resistant finish; the exact products should be confirmed through technical review of the substrate and exposure.

Common mistakes, and a short checklist before you choose

Most waterproofing disappointments trace back to a handful of decisions made too early or skipped entirely. The mistakes below recur across roofs, decks and wet areas regardless of which type is used, and the checklist that follows is a way to catch them before a system is specified.

• Mistake: treating waterproofing as one product rather than a system, so repair and detailing get dropped.
• Mistake: ignoring detailing at joints, upstands and penetrations, which is where waterproofing actually fails.
• Mistake: choosing a type without knowing whether the situation is positive-side or negative-side.
• Mistake: skipping the falls-to-drain question, so water ponds on a surface never designed to hold it.
• Checklist: confirm the water source and whether you are working positive-side or negative-side.
• Checklist: identify the substrate condition and what repair the defects need first.
• Checklist: list every joint, upstand, penetration and drain that needs detailing.
• Checklist: decide the form (coating, sheet, cementitious, integral) against exposure, movement and access.
• Checklist: check falls to drain against SS 637 or the project specification, and plan protection over the membrane.
