What is an anti-carbonation coating, and when does concrete need one?

What carbonation is, and why it matters

Fresh concrete is strongly alkaline, and that high pore-water pH forms a passivating layer around the reinforcing steel that keeps it from corroding. Carbonation is the slow process by which atmospheric carbon dioxide diffuses into the concrete and reacts with the alkaline pore water, lowering the pH. The reaction advances inward as a carbonation front.

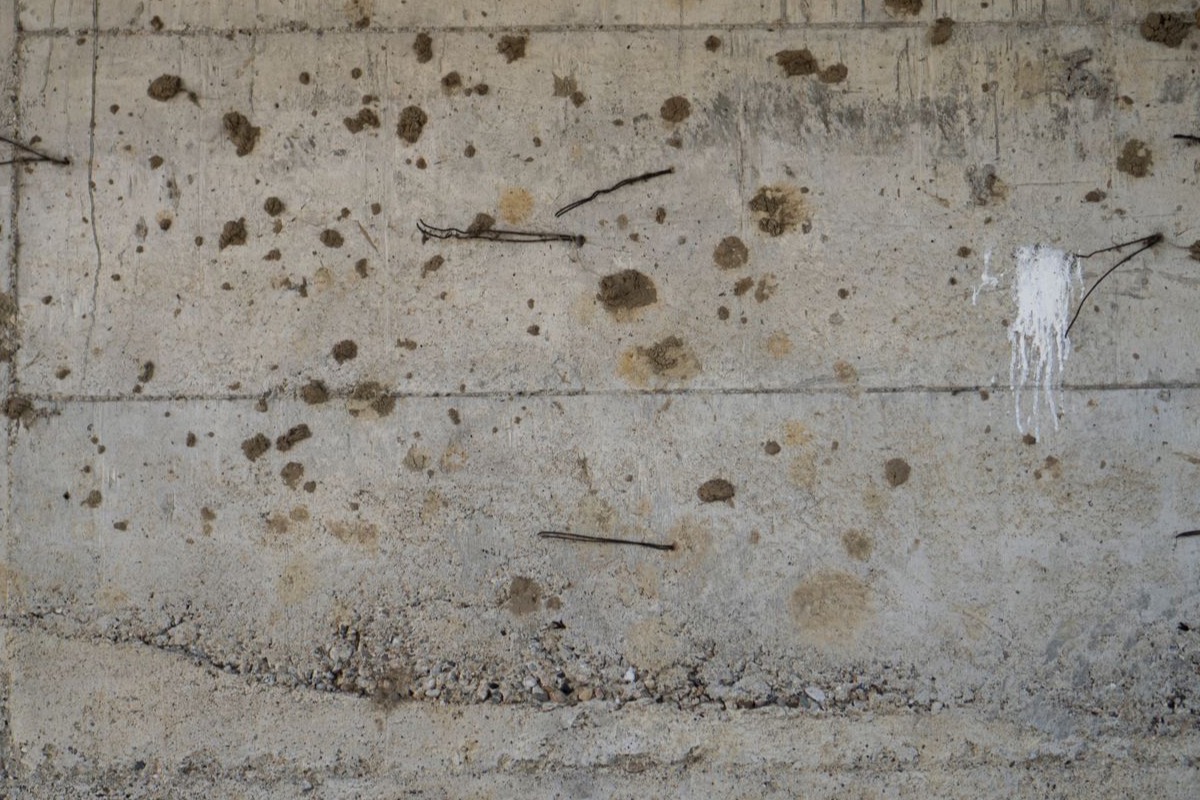

When that front reaches the depth of the reinforcement, it destroys the passivating layer. The steel is then free to corrode, and because the corrosion products occupy more volume than the original steel, they exert internal pressure that cracks and spalls the surrounding concrete. This is a durability, or service-life, problem: it is about how long the structure protects its steel, and it is distinct from waterproofing, which is about keeping liquid water out.

Carbonation is therefore a slow, diffusion-driven ageing of concrete rather than a leak. It is measured by carbonation depth, and it is managed by slowing the front so the time-to-corrosion is pushed out well beyond the intended service life.

What an anti-carbonation coating does

An anti-carbonation coating is a surface coating that acts as a barrier to carbon dioxide diffusion, and usually to liquid water as well, while remaining breathable to water vapour so that moisture in the concrete can still escape. By slowing the rate at which CO2 can enter, it slows the advance of the carbonation front and extends the time before the reinforcement is at risk.

These coatings are typically acrylic or elastomeric films. Where the concrete may crack in service, crack-bridging matters, because a barrier that splits over a live crack stops protecting the concrete at exactly the point most exposed. An elastomeric coating that can bridge fine movement holds its protective function where a rigid film would fail.

The key idea is that the coating does not change the concrete itself; it changes the environment at the surface. It buys time by making CO2 and water work much harder to reach the steel, which is why it is treated as a durability specification rather than a cosmetic one.

The standards that govern concrete protection

The governing product standard for these systems is EN 1504-2:2004, which covers surface protection systems for concrete and recognises three methods: hydrophobic impregnation, impregnation, and coating. An anti-carbonation coating sits in the coating method. EN 1504-2 is part of the wider EN 1504 family, whose general principles for protection and repair are set out in EN 1504-9; that part defines 11 principles for addressing defects and protecting concrete and its reinforcement.

Where crack-bridging is required, it is classified by EN 1062-7:2004, which tests crack-bridging of coatings for concrete and masonry under both static and dynamic conditions and sorts the result into classes A1 to A5, from lowest to highest capability. A specification names the required class; the per-class limits themselves are read from the standard and are not reproduced here.

Resistance to CO2 diffusion is commonly expressed as an equivalent air-layer thickness, an idea often written as Sd or SD,CO2: the notional thickness of still air that would offer the same diffusion resistance as the coating. The concept is useful for comparing coatings, but any specific value that a project demands is set by the specification and should be confirmed against it rather than assumed. Surface preparation, on which all of this depends, is covered in concrete-surface-preparation-guide.

Protection versus repair: an honest distinction

An anti-carbonation coating protects; it does not repair. On sound or newly built concrete it slows carbonation and defers corrosion, which is exactly its purpose. On concrete where the carbonation front has already reached the steel and the rebar is corroding, a coating applied over the top does not reverse the carbonation that has already happened and does not stop steel that is already active.

In that already-deteriorating case, the sequence is repair first, then protect. Corroding and spalled concrete must be broken out, the steel treated, and the section reinstated with a suitable repair material before any surface-protection coating is applied. Applying the coating over live corrosion simply seals in the problem while the spalling continues underneath. This is one of the most common and most costly mistakes on a carbonation job.

The related coating-failure modes on floors and other exposed concrete, such as debonding over unsound substrate, are covered in why-industrial-floor-coatings-fail; the broader waterproofing picture, and where protection differs from keeping water out, is framed in the pillar guide at types-of-waterproofing and, for below-grade water, in basement-waterproofing.

How to specify an anti-carbonation coating

Specifying one well means naming the properties that matter and the standard or specification against which each is judged, rather than picking a product by name. The table sets out the properties an engineer or QP typically calls up, why each matters for concrete protection, and how it is assessed or specified.

Read together, these properties describe a coating that keeps CO2 out, lets vapour escape, tolerates the movement the structure will see, and stays adhered and durable under Singapore's UV and rain. Each value should be confirmed against the project specification and, where relevant, the EN 1504-2 requirements the specifier adopts.

Common mistakes and a specifier's checklist

The mistakes on carbonation jobs are consistent, and each undoes the protection the coating was meant to provide. Avoiding them is largely a matter of assessing the concrete honestly before choosing a coating.

Sparco manufactures protective and waterproofing coatings but does not list a dedicated anti-carbonation product in its standard range, and it makes no EN 1504-2 conformity claim here. Where a project has a defined anti-carbonation requirement, the practical route is to position Sparco's protective coating stack and its ODM route for a project-specific formulation, with the required properties confirmed against the specification. The checklist below is what to pin down before specifying.

• Mistake: coating over already-corroding rebar without repairing the concrete first
• Mistake: specifying a non-breathable film that traps moisture and blisters
• Mistake: ignoring crack-bridging on a structure that will crack in service
• Mistake: treating anti-carbonation and waterproofing as the same thing
• Checklist: measure carbonation depth and locate cracks and existing corrosion
• Checklist: repair any corroding or spalled concrete before protecting
• Checklist: specify CO2 resistance, breathability and crack-bridging class
• Checklist: confirm all values against EN 1504-2 and the project specification
